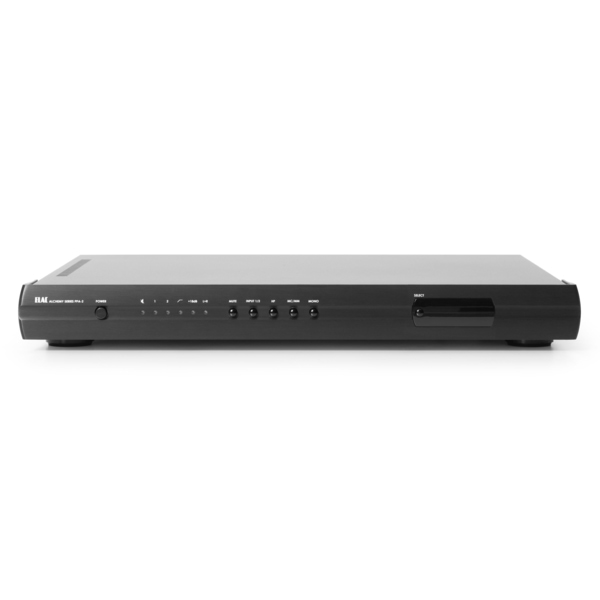

ELAC Alchemy PPA2 Phono Preamplifier

£999.00

ELAC-Alchemy-PPA2

ELAC Alchemy PPA2 is a high-end phono amplifier that’s highly flexible with all cartridges.

The history of Elac began on September 1, 1926 in Kiel, Germany, when Electroacustic GmbH was founded to focus on the development of sonar… read more

The ELAC Alchemy PPA2 is a full-featured phono preamp that uses all analogue, discrete FET gain and EQ stages to transform microscopic grooves in vinyl into stunningly lifelike music. The PPA-2 can be tailored to specific cartridge requirements, with switchable gain for each channel, MC cartridge loading, and stereo or mono operation. A selection of RCA or XLR inputs and outputs adds even more flexibility to the most versatile phono preamp in its class.

Specifications

Inputs: (2) RCA UNBALANCED or (1) RCA & (1) XLR BALANCED
Input impedance: 5-1KOhms variable or 47K
Frequency response: 10hz-20khz /- 0.2dB
RIAA accuracy:  /- 0.2dB
Nominal THD N: <0.005%
Signal-to-noise ratio (1 kHz): >86dB
Output Voltage: >6.0V RMS
Crosstalk (L-to-R or R-to-L): >80dB
Single ended Gain: 42dB (low) or 60dB (high)
Balanced Gain: 48dB (low) or 66dB (high)
Output impedance: 50 Ohms
Analog Outputs: (1) XLR BALANCED, (1) RCA UNBALANCED
Available finishes: Black
Dimensions (HxWxD): 2″ x 17.5″ x 15″ including jacks
Weight: 12 lbs
